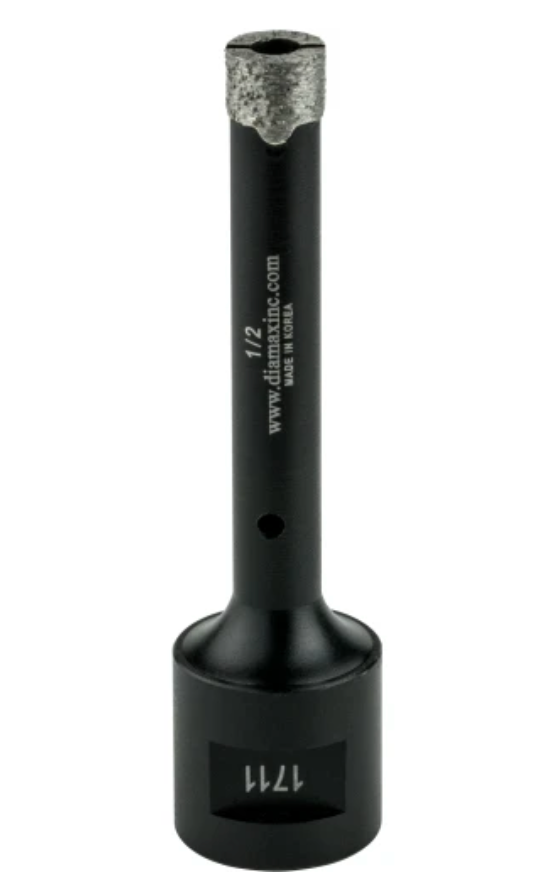

Cyclone Non Core Bit
High performance non core drill bit for precise hole drilling in stone, porcelain, and ultra compact surfaces.
Description
The Cyclone Non Core Bit features a newly developed dry segment matrix engineered to withstand high heat conditions while maintaining fast, efficient drilling performance. Designed specifically for creating small diameter holes in stone, it is ideal for installing anchors, passing screws through stone surfaces, routing cables, and handling specialty fabrication applications. Its durable diamond segment construction delivers reliable drilling in granite, quartz, engineered stone, and other hard materials. For optimum performance and extended tool life, use at 6,500 RPM with center-fed water cooling.
Features
- New dry segment matrix allows these non-core drill bits to perform under high heat conditions
- For best performance, use at 6,500 RPM with center-fed water
- Ideal for engineered stone, granite, porcelain/tile, and ultra-compact surfaces
- Specially designed for drilling small holes for anchors, screws, cables, and specialty fabrication applications
- 5/8″-11 thread connection
- Suitable for wet or dry use
- Durable diamond segments provide fast, efficient drilling performance
- Designed for precision hole-making in hard stone materials
| Internal Reference | Size | Fitting | Usable Length | Max RPM Wet | Max RPM Dry |
|---|---|---|---|---|---|
| CDBYNC316 | 3/16″ | 5/8″-11 Thread | 2″ | 6,500 | 2,000 |
| CDBYNC14 | 1/4″ | 5/8″-11 Thread | 2″ | 6,500 | 2,000 |
| CDBYNC516 | 5/16″ | 5/8″-11 Thread | 2″ | 6,500 | 2,000 |
| CDBYNC38 | 3/8″ | 5/8″-11 Thread | 2″ | 6,500 | 6,000 |
| CDBY12 | 1/2″ | 5/8″-11 Thread | 2.75″ | 8,000 | 6,000 |
| CDBY58 | 5/8″ | 5/8″-11 Thread | 2.75″ | 8,000 | 6,000 |
| CDBY34 | 3/4″ | 5/8″-11 Thread | 2.75″ | 8,000 | 6,000 |
